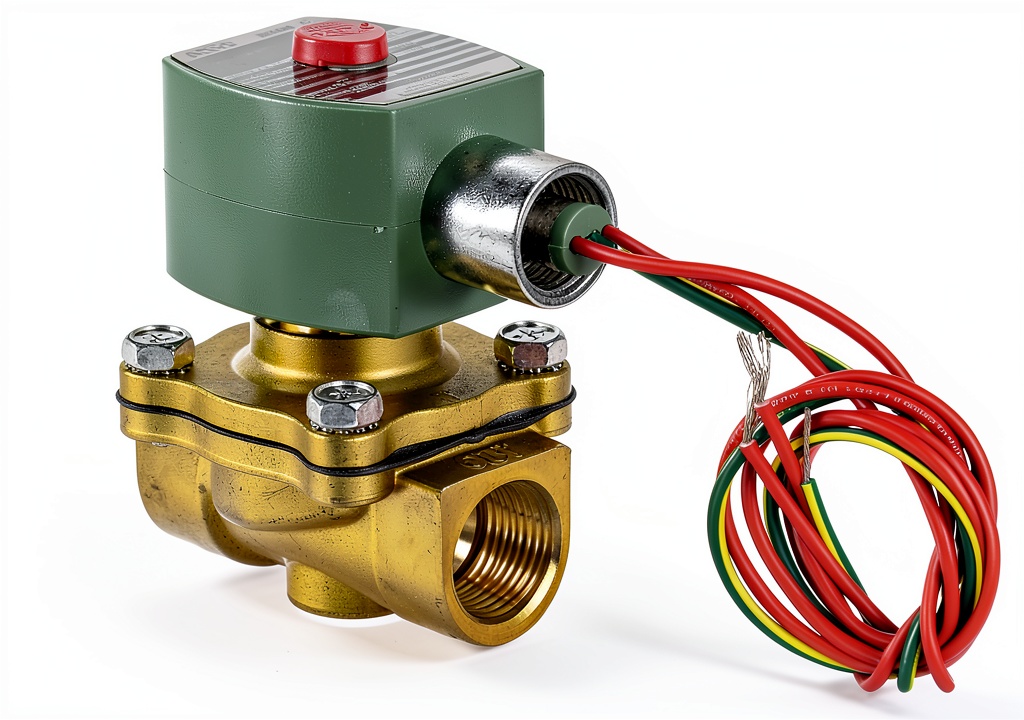

ASCO 8222G095 Brass Pilot Diaphragm Valve 3/4″ for Hot Water Steam

Description

Product Overview

The ASCO 8222G095 is a high‑quality brass pilot operated diaphragm valve designed for demanding hot water and steam applications. Its robust brass body provides excellent corrosion resistance, while the PTFE sealing ensures a leak‑free performance even under continuous cycling. The valve features a 3/4 inch pipe connection, supporting standard industrial fittings, and is rated for a maximum operating pressure of 50 psi. As a two‑way normally closed device, it remains closed until energized, offering precise control and safety in critical systems. The pilot operation reduces the required actuation force, allowing for reliable performance with minimal energy consumption.

Usage

This valve excels in a variety of industrial environments, including HVAC systems, commercial boiler installations, and process heating loops. It is ideal for controlling the flow of hot water or steam in heating, cooling, and temperature regulation circuits where precise modulation is required. The compact 3/4 inch size fits easily into tight spaces, making it suitable for retrofit projects and new construction alike. Its pilot‑operated design enables integration with modern programmable controllers, allowing automated scheduling, remote monitoring, and seamless coordination with other system components. Whether used in a large‑scale plant or a smaller commercial facility, the ASCO 8222G095 delivers consistent performance and helps maintain energy efficiency.

Why Choose Us

Choosing the ASCO 8222G095 means selecting a valve backed by decades of engineering expertise and a reputation for reliability. ASCO Valve Inc. manufactures each unit in Mexico under strict quality‑control standards, ensuring every valve meets or exceeds industry specifications. The brass construction provides long‑term durability, resisting wear and chemical attack, while the PTFE seal offers superior leak protection. Our commitment to customer satisfaction includes comprehensive technical support, detailed installation guides, and a responsive after‑sales service team ready to assist with any questions. By investing in this valve, you gain a product that not only performs reliably but also contributes to lower maintenance costs and extended system life.

Key Features

• Robust brass body delivers long‑lasting durability and corrosion resistance.
• PTFE sealing provides a leak‑free operation even under high‑temperature conditions.
• Pilot operated design reduces actuation force, saving energy and simplifying control.
• 3/4 inch pipe size fits standard fittings, enabling easy installation in tight spaces.
• Dedicated technical support and after‑sales service ensure reliable performance throughout the product life.

FAQ

What types of fluids can the ASCO 8222G095 handle?

The valve is designed for hot water and steam applications up to 50 psi. Its brass construction and PTFE seal are compatible with typical industrial water‑based fluids and steam, making it suitable for heating, cooling, and process temperature control systems.

How does the pilot operated mechanism work?

In a pilot operated diaphragm valve, a small pilot valve controls the pressure on one side of the diaphragm. When the pilot is energized, pressure is released, allowing the diaphragm to move and open the main valve. This design requires less power than a direct‑acting valve and provides precise flow modulation.

Is the valve suitable for outdoor installations?

Yes, the brass body offers good resistance to environmental exposure, and the PTFE seal protects against moisture ingress. For outdoor use, it is recommended to install the valve within a protective enclosure or provide additional shielding to guard against extreme weather conditions.

Can the valve be integrated with modern control systems?

Absolutely. The ASCO 8222G095 can be connected to standard 24 V DC or AC control circuits and is compatible with most programmable logic controllers (PLCs) and building management systems (BMS). Its pilot operated design allows for easy interfacing with digital or analog control signals, enabling automated scheduling and remote monitoring.

What maintenance is required to keep the valve operating optimally?

Routine inspection of the PTFE seal and diaphragm for wear is recommended, especially in high‑cycle applications. Cleaning the valve body to remove any mineral deposits or debris will help maintain flow efficiency. Replacement of the seal or diaphragm can be performed without removing the entire valve from the system, minimizing downtime.
